PRODUCTS
-

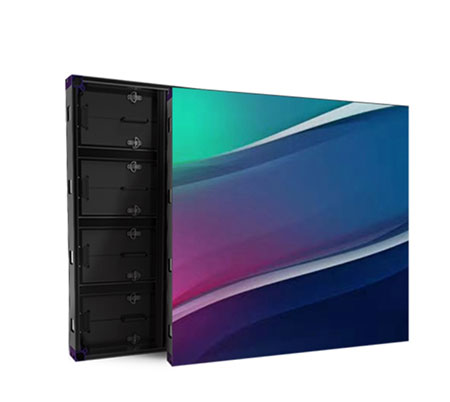

Outdoor LED display-Ares
Ares
Preferred installation of outdoor LED display
50% running cost saving
10,000 nits brightness
1m X 1m aluminium cabinet
Engineering
Front/Rear maintenance
No need Air Conditioner
Silver,White, Black
23KG/panel
Light weight

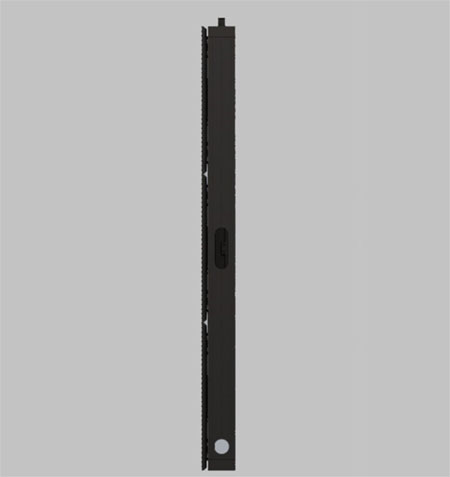

Slim and light weight

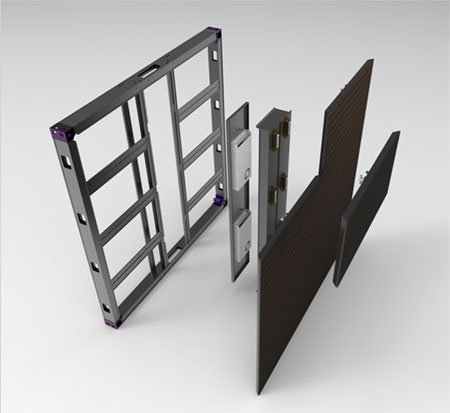

Aluminium panel
Curvable design
Plug & play
Ship&Install cost saving

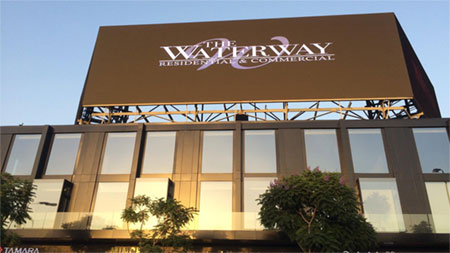

The waterway led screen,On the weekend,
you should go to waterway,find a coffeeshop,
have a drink and enjoy content from big led display.Pixel pitch (mm) 10.4 3.9 4.8 6.2 7.8 Model
AO10.4-10001000
AO3.9-10001000
AO4.8-10001000
AO6.2-10001000
AO7.8-10001000LED SMD2727 SMD1921 SMD1921 SMD2727 SMD2727 Density (dots/sqm) 9246 65746 43403 26015 16437 Module resolution (dots) 1156 8218 5425 3252 2055 Module width (mm) 500 500 500 500 500 Module height (mm) 250 250 250 250 250 Cabinet width (mm) 1000 1000 1000 1000 1000 Cabinet height (mm) 1000 1000 1000 1000 1000 Cabinet depth 60 60 60 60 60 Resolution (dots) 9246 65746 43403 26015 16437 Weight (kg) 24 24 24 24 24 Material Aluminium Aluminium Aluminium Aluminium Aluminium Maintain Front rear Front rear Front rear Front rear Front rear IPX IP65 IP65 IP65 IP65 IP65 Max brightness (cd/sqm) 10000 10000 10000 10000 10000 Color temperature (k) 6500 6500 6500 6500 6500 Angle 140 140 140 140 140 Contrast ratio 1:1 1:1 1:1 1:1 1:1 Max power (w) 600 600 600 600 600 Average power (w) 200 200 200 200 200 Voltage type AC AC AC AC AC Voltage (v) 110-220 110-220 110-220 110-220 110-220 Driving method 2 8 7 5 4 Screen FPS (hz) 60 60 60 60 60
