Indoor LED video wall-hiLuxPro
AreshiLUX Pro Series
Full HD,GOB fine pitch | Indoor LED video wall

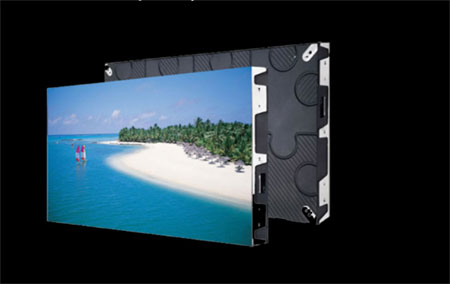

Design & Maintenance
Slim cabinet,weight 5.5kgs,depth:58mm
Standard 16:9 ratio cabinet

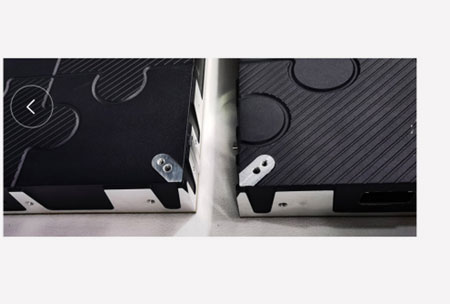

Cableless ,integrated plugin connection stability
Built-in power box
Complete front maintenance

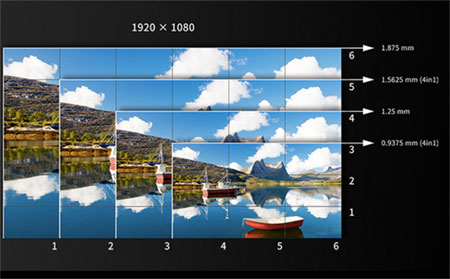

16:9 Ratio Splicing
27" cabinet ratio match any existing LCD size
Standard 16:9 ratio is perfect for creating full HD,4K&8k LED video wall

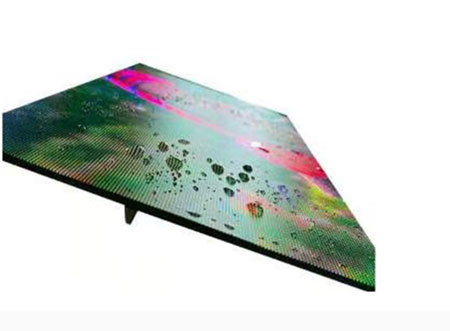

GOB Technology,High Protection
Waterproof, dust-proof
Anti-crash
High contrast,increase 20% contrast
HDR
Support HDR high dynamic range image technology
True visual color rendition

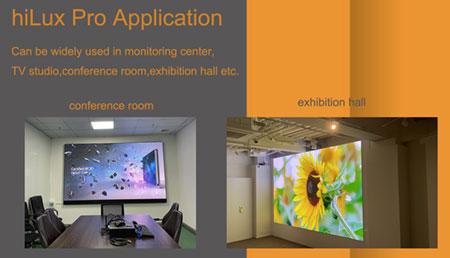

hiLux Pro Application
LUX Pro Application
Can be widely used in monitoring center,
TVstudio,conference room,exhibition hall etc.Pixel pitch (mm) 0.97 1.25 1.56 1.875 Model
LP0.9-600337
LP1.2-600337
LP1.5-600337
LP1.8-600337LED SMD4in1 SMD1010 SMD1212 SMD1212 Density (dots/sqm) 1062812 640000 410914 284444 Module resolution (dots) 53566 32256 20710 14336 Module width (mm) 300 300 300 300 Module height (mm) 168 168 168 168 Cabinet width (mm) 600 600 600 600 Cabinet height (mm) 337 337 337 337 Cabinet depth 58 58 58 58 Resolution (dots) 214901 129408 83087 57515 Weight (kg) 5 5 5 5 Material aluminium aluminium aluminium aluminium Maintain Front Front Front Front IPX IP43 IP43 IP43 IP43 Max brightness (cd/sqm) 800 800 800 800 Color temperature (k) 6500 6500 6500 6500 Angle 140/140 140/140 140/140 140/140 Contrast ratio 5000:1 5000:1 5000:1 5000:1 Max power (w) 80 80 80 120 Average power (w) 50 50 50 60 Voltage type AC AC AC AC Voltage (v) 110-220 110-220 110-220 110-220 Driving method 1/45 1/45 1/36 1/32 Screen FPS (hz) 60 60 60 60
