Indoor LED billboard-Reta

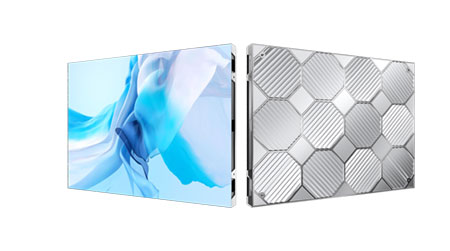

Reta
Characters

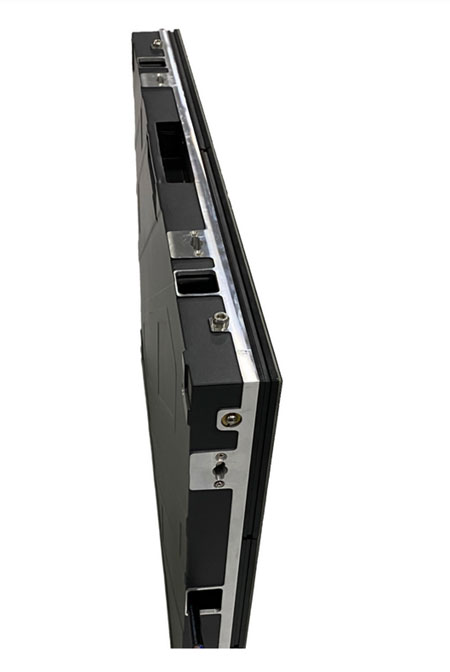

Slim design,depth:58mm
Clean interior,Fast connection
Built-in handle,convenience
High precision position,Fast and easy installation
Front maintenance
Design

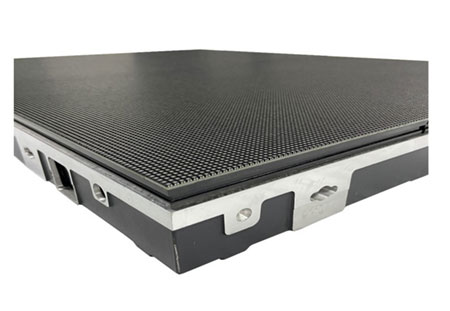

Die-casting aluminum panel
Seamless installation
Installation
Hanging/Fixed installation available
Reta application
Can be widely use in bank,
hotel and station

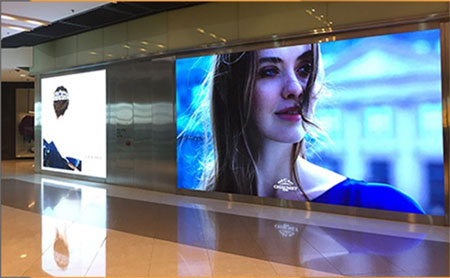

LED display installation casePixel pitch (mm) 1.875 2 2.5 Model
(RI1.8-640480/RI1.8-960480)
(RI2-640480/RI2-960480)
(RI2.5-640480/RI2.5-960480)LED SMD1515 SMD2121 SMD2020 Density (dots/sqm) 284444 250000 160000 Module resolution (dots) 14564 12800 8192 Module width (mm) 320 320 320 Module height (mm) 160 160 160 Cabinet width (mm) (640/960) (640/960) (640/960) Cabinet height (mm) 480 480 480 Cabinet depth 40 40 40 Resolution (dots) (87381/131072) (76800/115200) (49152/73728) Weight (kg) (6/9) (6/9) 6 Material aluminium aluminium aluminium Maintain Front Front Front IPX IP43 IP43 IP43 Max brightness (cd/sqm) 800 800 800 Color temperature (k) 6500 6500 6500 Angle 140/140 140/140 140/140 Contrast ratio 5000:1 5000:1 5000:1 Max power (w) (90/160) (110/170) (120/180) Average power (w) (50/80) (60/80) (65/85) Voltage type AC AC AC Voltage (v) 110-220 110-220 110-220 Driving method 1/32 1/40 1/32 Screen FPS (hz) 60 60 60
