PRODUCTS
-

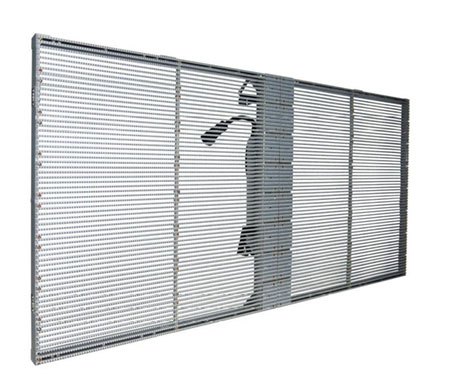

Transparent led screen-Crystal
Crystal series

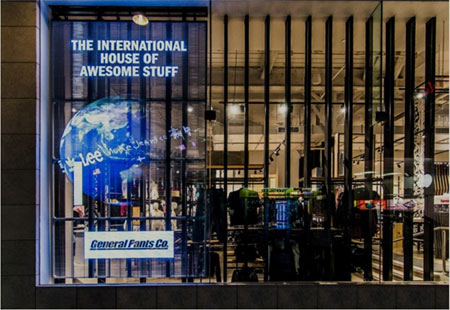

Transparent screen behind shop glass
75% Transparency
Waterproof & high brightness
Fix install & Rental
Light weight
GOB technology
Water proof
Dust proof
Anti-Crash
High contrast

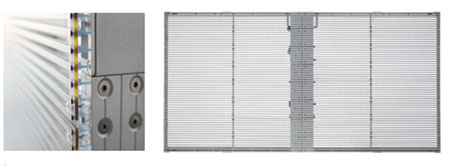

Die casting panel plus aluminium profile
Easier Install and maintain with modular design

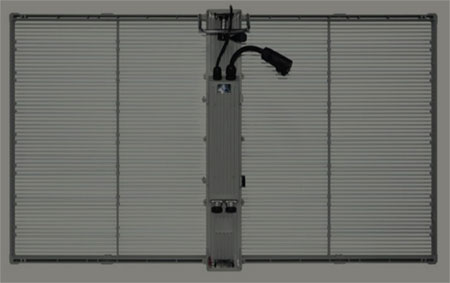

Clean front & rear without cable
Application cases of LED display screen
Pixel pitch (mm) 2.5 3.91 5.2 Model
N2.5/7.8-1000500
N3.9/7.8-1000500
N5.2/10.4-1000500LED SMD2020 SMD2020 SMD2020 Density (dots/sqm) 160000 65410 36982 Module resolution (dots) 10000 4088 2311 Module width (mm) 500 500 500 Module height (mm) 125 125 125 Cabinet width (mm) 1000 1000 1000 Cabinet height (mm) 500 500 500 Cabinet depth 60 60 60 Resolution (dots) 80000 32705 18491 Weight (kg) 12.5 12 11.5 Material aluminium aluminium aluminium Maintain Front rear Front rear Front rear IPX IP65 IP65 IP65 Max brightness (cd/sqm) 1500 1500 1500 Color temperature (k) 6500 6500 6500 Angle 140/140 140/140 140/140 Contrast ratio 5000:1 5000:1 5000:1 Max power (w) 400 400 400 Average power (w) 150 150 150 Voltage type AC AC AC Voltage (v) 110-220 110-220 110-220 Driving method 1/8 1/4 1/4 Screen FPS (hz) 60 60 60
