LED Screen Fine pitch-hiLux
hiLux series

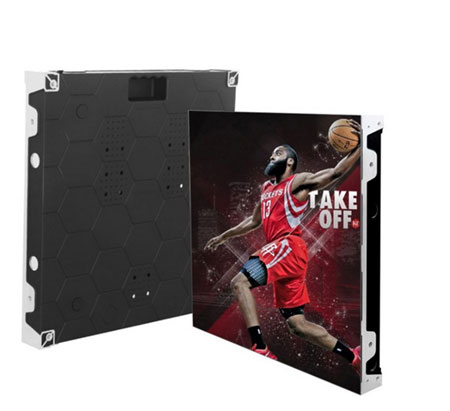

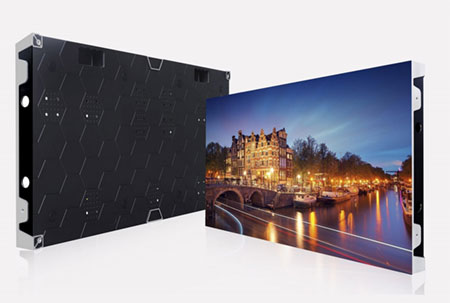

Cabinet design
Light and slim depth,depth 58mm
Dia-casting aluminum whole panel with CNC machine
Clean/Fast installation
Neat connection
Slot design make fast installation
Modular design, seamless, efficient

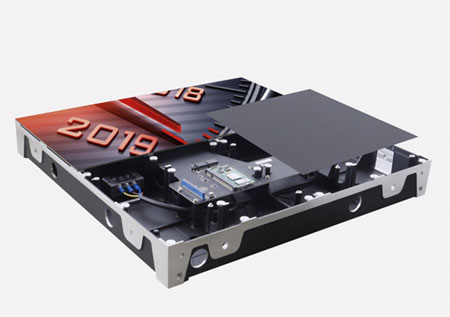

Front maintance

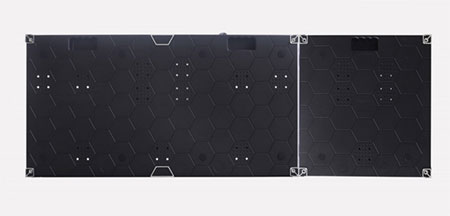

Mixed Assembly Installation
Support mixed assembly of large and small size
cabinet to meet the various LED screen size

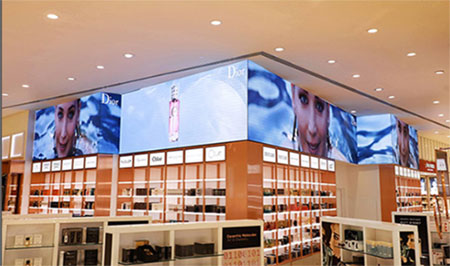

hiL uX Application
Can be widely use in Meeting Room, Live Studio, Security, TV studio.Pixel pitch (mm) 1.29 1.579 1.875 2.5 Model
(LI1.2-480480/LI1.2-960480)
(LI1.5-480480/LI1.5-960480)
(LI1.8-480480/LI1.8-960480)
(LI2.5-480480/LI2.5-960480)LED SMD1010 SMD1212 SMD1515 SMD2121 Density (dots/sqm) 600925 401084 284444 160000 Module resolution (dots) 34613 23102 16384 9216 Module width (mm) 240 240 240 240 Module height (mm) 240 240 240 240 Cabinet width (mm) (480/960) (480/960) (480/960) (480/960) Cabinet height (mm) 480 480 480 480 Cabinet depth 40 40 40 40 Resolution (dots) (138453/276906) (92410/184820) (65536/131072) (36864/73728) Weight (kg) (7/14) (7/14) (7/14) (7/14) Material aluminium aluminium aluminium aluminium Maintain Front Front Front Front IPX IP43 IP43 IP43 IP43 Max brightness (cd/sqm) 800 800 800 800 Color temperature (k) 6500 6500 6500 6500 Angle 140/140 140/140 140/140 140/140 Contrast ratio 5000:1 5000:1 5000:1 5000:1 Max power (w) (80/100) (80/110) (80/90) (80/120) Average power (w) (40/56) (45/54) (45/50) (45/65) Voltage type AC AC AC AC Voltage (v) 110-220 110-220 110-220 (110/110-220) Driving method 1/62 1/52 1/32 1/32 Screen FPS (hz) 60 60 60 60
