Indoor LED billboard-sTile
sTile
Fast Flat Stretch
V arious ( Cabinet Sizes
500x250mm/750x250mm/1000x250 mm/500x500 mm

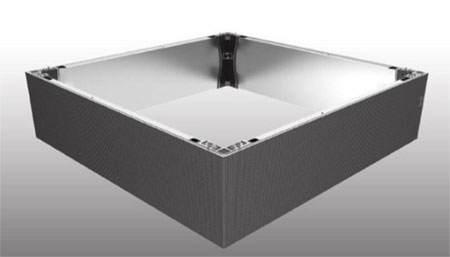

Installation-various shaps
Flexible in different shapes installation:
> 90 degree installation with cutted panel
< Concave and Convex installation possible
Pixel pitch (mm) 1.95 2.5 2.6 Model
(TI1.9-1000250/TI1.9-500250/TI1.9-750250)
(TI2.5-1000250/TI2.5-500250/TI2.5-750250)
(TI2.6-1000250/TI2.6-500250/TI2.6-750250)LED SMD1010 SMD2121 SMD2121 Density (dots/sqm) 262985 160000 147929 Module resolution (dots) 16437 10000 9246 Module width (mm) 250 250 250 Module height (mm) 250 250 250 Cabinet width (mm) (1000/500/750) (1000/500/750) (1000/500/750) Cabinet height (mm) 250 250 250 Cabinet depth 40 40 40 Resolution (dots) (65746/32873/49310) (40000/20000/30000) (36982/18491/27737) Weight (kg) (4/3/3.5) 3 (4/3/3.5) Material aluminium aluminium aluminium Maintain Front Front Front IPX IP43 IP43 IP43 Max brightness (cd/sqm) 800 800 800 Color temperature (k) 6500 6500 6500 Angle 140/140 140/140 140/140 Contrast ratio 5000:1 5000:1 5000:1 Max power (w) (100/80/90) (100/80/90) (100/80/90) Average power (w) (65/36/52) (65/36/50) (65/36/52) Voltage type AC AC AC Voltage (v) 110-220 110-220 (110-220/110/110-220) Driving method 1/32 1/25 1/32 Screen FPS (hz) 60 60 60
